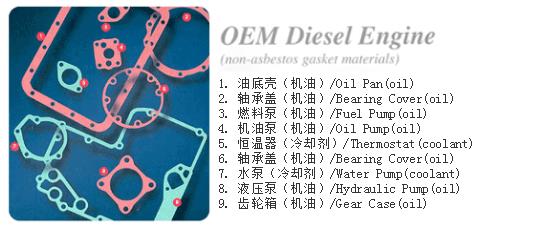

Case study of gasket for diesel engine


The high performance gasket material provided by interfaith gasket company is specially designed to meet the stringent requirements of current diesel engines.These materials have excellent long - term durable sealing properties.Can achieve, even exceed the engine manufacturers to provide users with durable use guarantee.Interfaith gaskets all products are manufactured according to the quality standard QS-9000 sealing materials.These high performance materials provide a new low cost, high efficiency solution for the sealing application of diesel engines.

Material selection recommendation

OEM gasoline engine
The high value
universal
economic
The oil application :
Oil sump, rear main gear seat, front shaft cover, take tubing
MP-15 PF-4S TS-9013
The fuel used:
Intake pipe, carburetor, throttle housing
CMP-4000 PF-4N N-8092
The air application:
Intake pipe, air filter, carburetor
PF-4N MP-2N N-8092
Coolant application:
Water pump, water pump inlet
CMP-4000 PF-4N TN-9015

In the OEM diesel engine market, the correct choice of gasket material requires a full understanding of the material design performance and applied component structure.The most important is that the performance of materials must meet or even exceed the requirements of diesel engine applications.When selecting and recommending material products for users, interfaith gasket company not only makes comprehensive and detailed analysis of the selected parts, but also carries out simulation tests on the selected materials, so as to ensure the reliability of the application of material products.

墊片material The density of(g/cc) Bonding agent Maximum intermittent temperature(℃) Truncated media are recommended Minimum tensile strength AMD(MPa) Minimum flange seal pressure oil @ 4 Bar(MPa)
MP-15 1.54 Neoprene 205 Oil, air, coolant 10.34 3.4
CMP-4000 1.60 NBR 350 Oil, air, coolant 23.00 4.8
PF-4N 1.44 NBR 290 Oil, air, coolant 8.97 10.3
PF-4S 1.28 SBR 230 Oil, air, coolant 8.28 13.8
MP-2N 1.35 NBR 205 Oil, air, coolant 8.28 6.9
TS-9013 1.36 SBR 290 Oil, air, coolant 8.28 10.3
TN-9015 1.28 NBR 290 Oil, air, coolant 10.34 10.3
N-8092 1.20 NBR 180 Oil, air, coolant 11.03 8.6
